Md: Torque at dP = 125 bar.
Larger models and different widths available upon request.
Also available with bolt-on forks:T456ZAG
Also available with sideshift, model T496ZG on request
Rotating Fork Positioner foundry version T456ZG
Rotation 360° continuous - 2 hydraulic functions
Technical Data

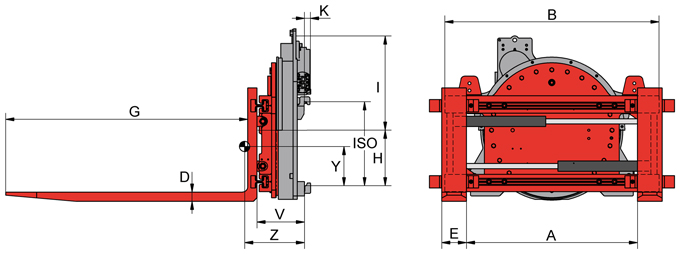

Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacity| Model | Cap. kg | LCD mm | A mm | B mm | D mm | E mm | G mm | H mm | I mm | K mm | Md ∆-P = 125 bar Nm | Req. oil volume per rotation ltr. | ISO | V mm | CofG Z mm | CofGv Y mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2T456BZG | 2.500 | 500 | 130-930 | 1.150 | 45 | 120 | 1.200 | 269 | 457 | 33 | 7.700 | 9,7 | 2 | 230 | 247 | 216 | 542 | On request | calculate |
| 2T456BZG | 2.500 | 500 | 130-930 | 1.150 | 45 | 120 | 1.200 | 269 | 457 | 33 | 7.700 | 9,7 | 3 | 230 | 247 | 216 | 542 | On request | calculate |
| 3,5T456BZG | 3.600 | 500 | 130-930 | 1.150 | 50 | 150 | 1.200 | 338 | 395 | 40 | 8.950 | 11,3 | 3 | 258 | 273 | 235 | 712 | On request | calculate |
| 4,5T456BZG | 4.500 | 500 | 130-1.130 | 1.350 | 60 | 150 | 1.200 | 338 | 395 | 40 | 8.950 | 11,3 | 3 | 261 | 282 | 231 | 795 | On request | calculate |
| 5T456ZG | 5.000 | 600 | 260-1.260 | 1.700 | 60 | 150 | 1.200 | 345 | 445 | 40 | 13.434 | 15,7 | 4 | 345 | 313 | 281 | 1.014 | On request | calculate |
| 8T456ZG | 5.500 | 810 | 240-1.240 | 1.700 | 70 | 160 | 1.200 | 396 | 480 | 40 | 21.679 | 18,8 | 4 | 402 | 318 | 334 | 1.705 | On request | calculate |
Larger models and different widths available upon request.
Also available with bolt-on forks:T456ZAG
Also available with sideshift, model T496ZG on request
Specification:
The design is, in principle, the same as the normal T456BZ version, the foundry version of this attachment range is suitable for applications with extremely high working temperatures as found, for example, in steel works. Compared to the T456BZ, the KAUP Rotating Fork Positioner T456ZG has a closed front plate and basic plate as well as heat resistant coated hydraulic pipes.
Qualities:
- Attachment also available with screw-on forks
- Solid construction
- Rotation 360° endless
- Optionally available with sideshift
- Larger models and construction widths optionally available
