Available with arms for plastic drums upon request.
This version is for cylindric drums with diameter of 600 mm. For other diameters on request.
Mini Drum Clamp T405
slip-on-fork version, arms coated with Remagrip - for cylindrical steel drums and garbage bins - without rotation - 1 hydraulic function
Technical Data

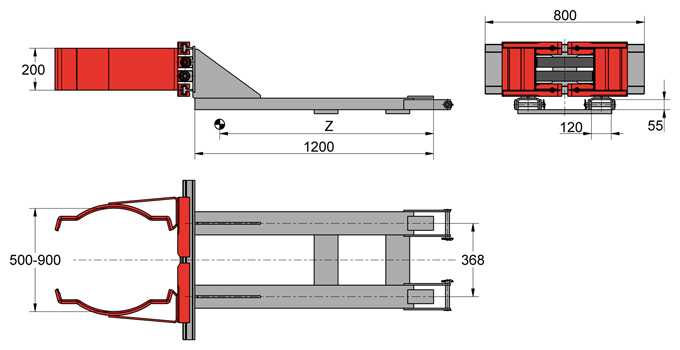

Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacity| Model | Cap. kg | LCD mm | Opening range mm | CofG Z mm | CofGv Y mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|
| 0,3T405 | 300 | 320 | 520-920 | 921 | 95 | 155 | On request | calculate |
This version is for cylindric drums with diameter of 600 mm. For other diameters on request.
Specification:
The KAUP Mini Drum Clamp T405 is the right choice when cylindrical drums and/or garbage vessels should be transported occasionally. For it the mini drums clamp has to be put on the existing forks, arrested and connected hydraulically with the forklift.
Qualities:
- Simply assembly
- Good visibility conditions
- Original forks can be used
- Clamp arms with rubber covering serially
