The arms are coated with Remagrip (see coatings in the pricelist).
special designs available for transportation of plastic drums (upon request)
This version is for cylindric drums with diameter of 600 mm. For other diameters on request.
Also available with sideshift, model T495-1 on request
Rotating Drum Clamp T455-1
360° rotation continuous - to transport cylindrical steel drums - arms covered with Remagrip, 2 hydraulic functions
Technical Data

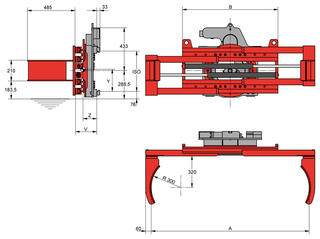

Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacity| Model | Cap. kg | LCD mm | A mm | B mm | Md ∆-P = 125 bar Nm | ISO | V mm | CofG Z mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1T455-1 | 700 | 320 | 420-1.600 | 970 | 6.013 | 2 | 216 | 146 | 305 | On request | calculate |
special designs available for transportation of plastic drums (upon request)
This version is for cylindric drums with diameter of 600 mm. For other diameters on request.
Also available with sideshift, model T495-1 on request
Specification:
The KAUP Rotating Drum Clamp T455-1 guarantees the safe transport of cylindrical steel barrels under all working conditions of a forklift like the acceleration, (curves) driving and braking. In addition, the sure lifting, rotating and emptying of these transport units becomes possible with this attachment.
Qualities:
- Good visibility conditions
- Stable construction
- Arms covered with Remagrip
- Optionally other arm pads
- Rotation 360° endlessly
- Optionally with sideshift available
- Implementation for plastic barrels optionally
