Available with arms for plastic drums upon request.
This version is for cylindric drums with diameter of 600 mm. For other diameters on request.
Mini Drum Tipping Clamp T405/130
slip-on-fork version, arms coated with Remagrip for cylindrical steel drums - without rotation - 90° forward tipping - 2 hydraulic functions
Technical Data

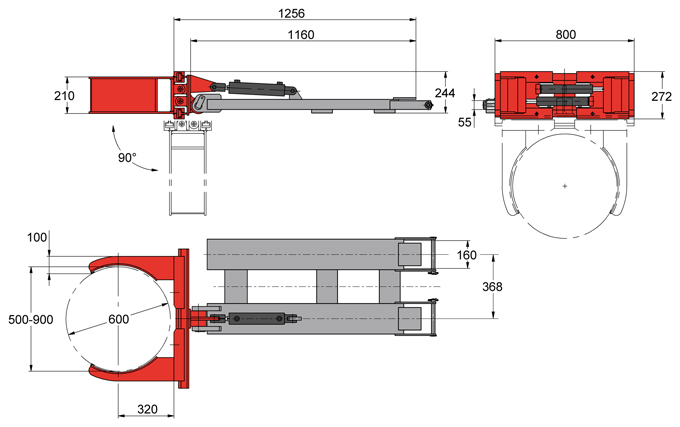

Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacity| Model | Cap. kg | LCD mm | Opening range mm | Tipping angle | CofG Z mm | CofGv Y mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|---|
| 0,3T405/130 | 300 | 320 | 520-920 | 90° | 987 | 30 | 181 | On request | calculate |
This version is for cylindric drums with diameter of 600 mm. For other diameters on request.
Specification:
With the KAUP Mini Drum Tipping Clamp T405/130 cylindrical drums can be taken up, transported and put away when required around 90° tilted. For it the mini drums clamp has to be put on the existing forks, arrested and connected hydraulically with the forklift.
Qualities:
- Simply assembly
- Good visibility conditions
- Up to 90° hydraulically tiltably
