Add-on price for 100mm armlength / -height on request,
For contact pad coatings see accessories in the pricelist.
Also available without sideshift, model 2T403G-2H
Load Backrest see model T179.
Appliance Clamp tiltable 2T413G-2H
with independent sideshift - rubber coated arms - both arms 90° forward tipping - 2 hydraulic functions + solenoid valve
Technical Data

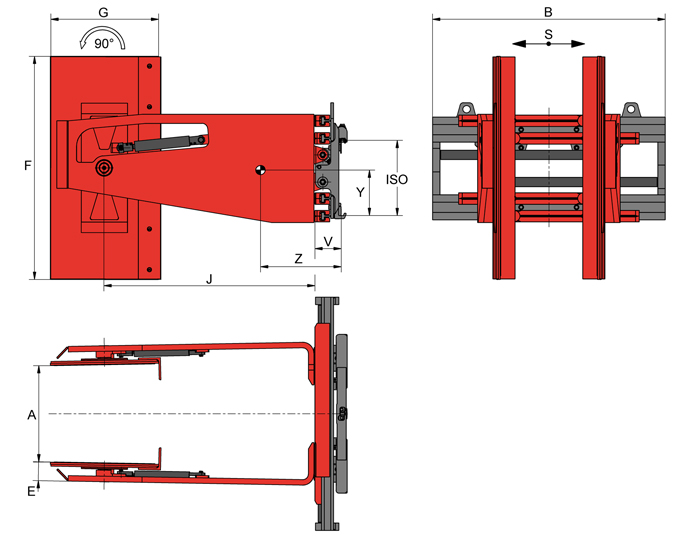

Refer to the data sheet for the exact dimensions of the product variants:
download pdf-datasheet Calculate residual capacity| Model | Cap. kg | LCD mm | S mm | A mm | B mm | F mm | E mm | G mm | J mm | ISO | V mm | CofG Z mm | CofGv Y mm | Weight kg | Price 人民币 |  calculations(load) capacity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2T413G-2H | 300 | 1.000 | ±100 | 540-2.160 | 1.260 | 1.200 | 102 | 580 | 1.000 | 2 | 143 | 670 | 265 | 790 | On request | calculate |
| 2T413G-2H | 300 | 1.000 | ±100 | 540-2.160 | 1.260 | 1.200 | 102 | 580 | 1.000 | 3 | 143 | 670 | 265 | 790 | On request | calculate |
For contact pad coatings see accessories in the pricelist.
Also available without sideshift, model 2T403G-2H
Load Backrest see model T179.
Specification:
With the KAUP Appliance Clamp tiltable 2T413G-2H it is possible to take up loading property and to set down 90° recumbent safely. Therefore, this attachment is suited especially to move stored goods or to load and unload truck, carriages and containers and to use, besides, the height optimally.
Qualities:
- Independent sideshift serially
- Contact pads of the clamp arms up to 90° hydraulically tiltably
- Load backrest optionally
